Multi Series
CNC Lathe
Machine Features:
Integrating cam, multi-tool synchronization, and CNC multi-axis control system.
It can work with 4 tools simultaneously, greatly reducing machining time for machining.
The compact but powerful body maximizes quality, increasing efficiency.
Examples:

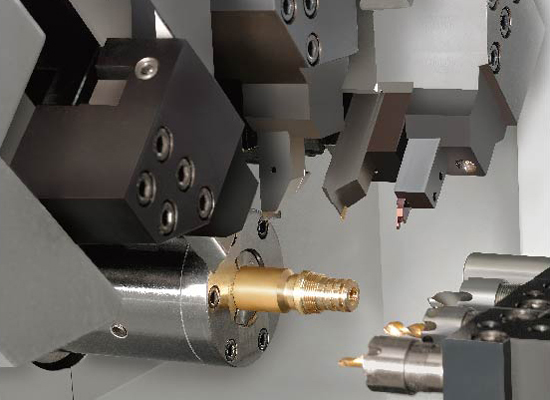

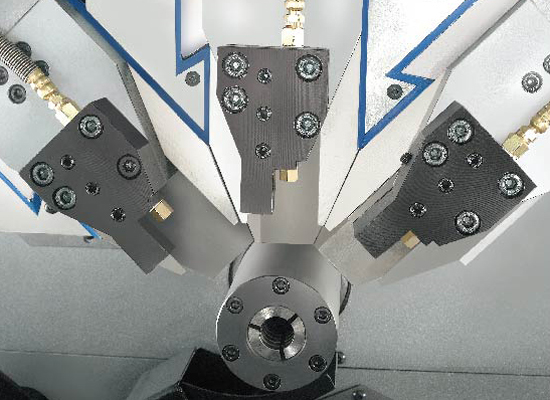

3 channel synchronous tool holder can setting 3 pcs tools
3 channel synchronous tool holder can setting 6 pcs tools

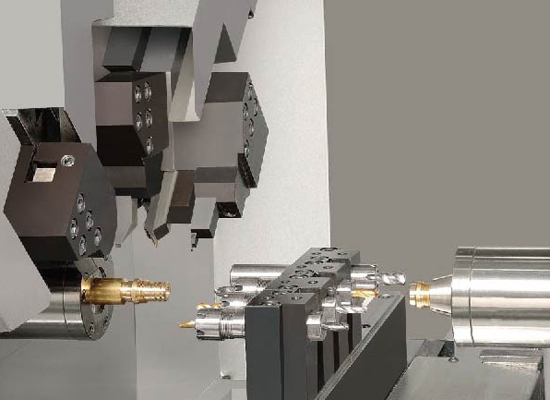

Gang type tool disc configure 4 pcs front boring tool holder
4 pcs back boring tool holder (if options sub-spindle have this accessorie)

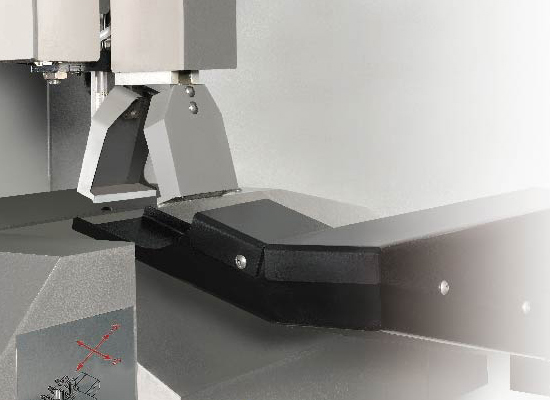

Part catcher for option sub-spindle

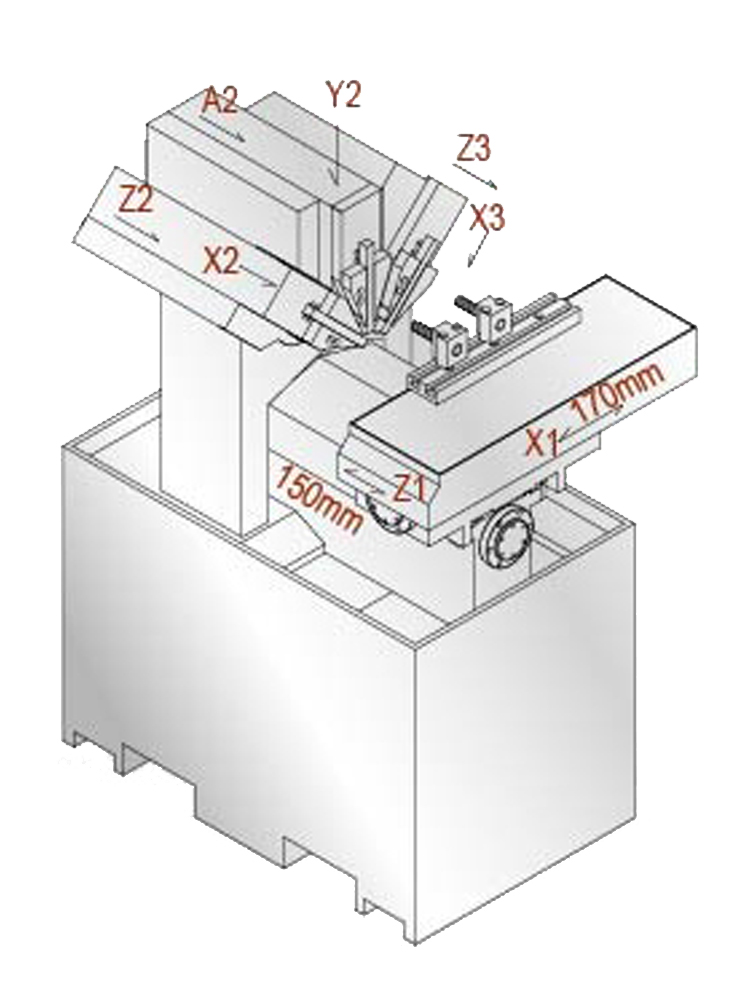

Multi 25
Z2, Z3, A2 = 60 mm
X2, X3, Y2 = 70 mm

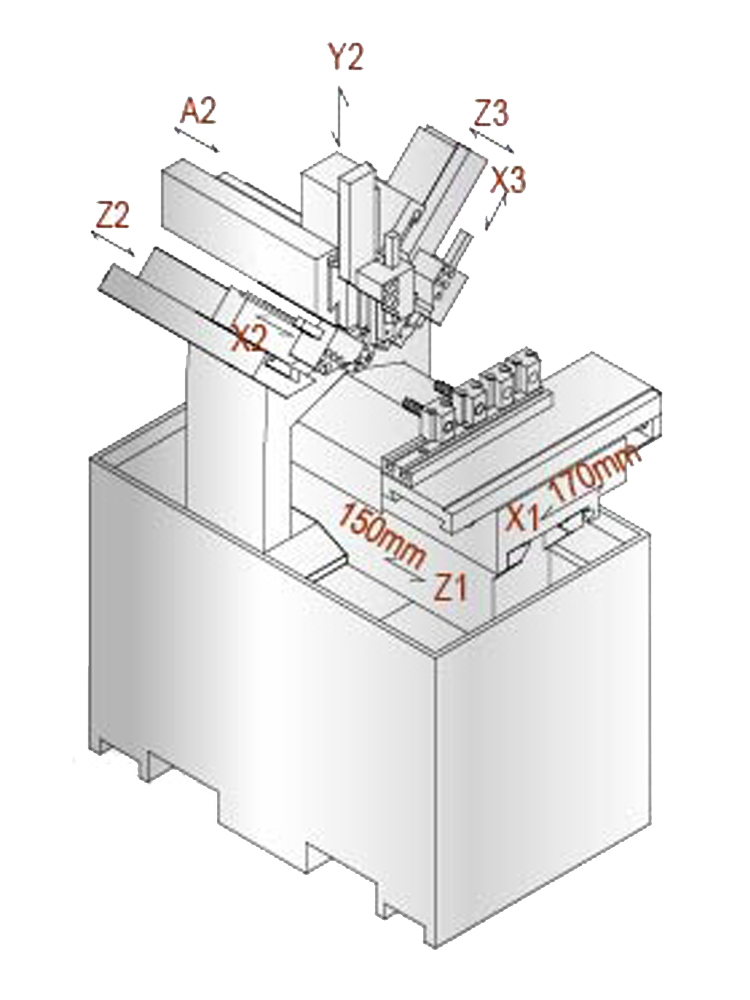

Multi 25-S
Z2, Z3, A2 = 100 mm
X2, X3, Y2 = 50 mm

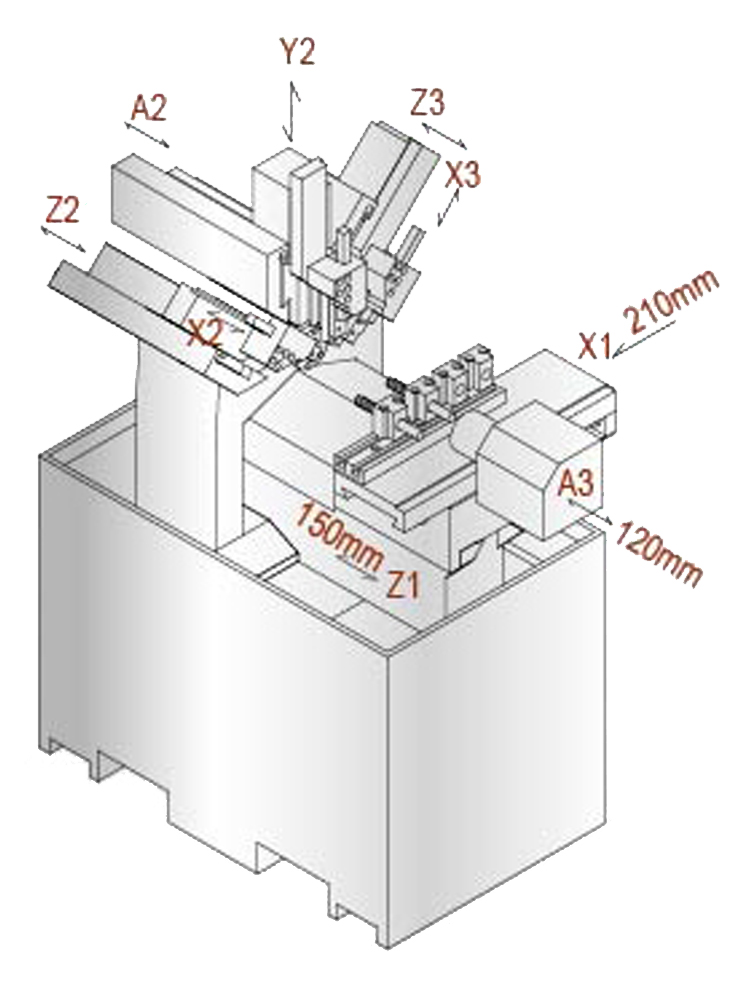

Multi 25-S
(Option sub-spindle)
Z2, Z3, A2 = 100 mm
X2, X3, Y2 = 50 mm
Standard Accessories:
| ITEMS | Q'TY | Multi 25 | Multi 25-S |
|---|---|---|---|
| Model 25 Collet Chuck (161E) | 1 pc |  |
|
| Working Light | 1 pc | |
|
| Tool and Tool Box | 1 set | |
|
| Coolant Device | 1 set | |
|
| Base Blocks | 4 pcs | |
|
| Boring Tool Holder | 4 pcs | |
|
| Tool Holder Bushing 6/8/10/12/16 | 2 pcs/each | |
|
Optional Accessories:
| ITEMS | Q'TY | Multi 25 | Multi 25-S |
|---|---|---|---|
| Sub-Spindle | 1 pc | |
|
| Part Catcher (for One Spindle) | 1 set | |
|
| Part Conveyor (for Two Spindle) | 1 set | |
|
| Chip Conveyor | 1 unit | |
|
| Chip Bucket | 1 unit | |
|
Machine Specifications:
| Items | MULTI 25 |
|---|---|
| Max. Machining Dia. | Ø26 mm |
| Max. Machining Length | Bar diameter x3 |
| Max. Cross Travel (X Axis) | 170 mm |
| Max. Longitudinal Travel (Z Axis) | 150 mm |
| Bore of Spindle | 34 mm |
| Max. Bar Feeding Dia. | 26 mm |
| Type of Collet | 161 E |
| Spindle Motor | 2.2 kw |
| Spindle Speed Range | 100-5000 r.m.p. |
| Sub-Spindle Motor (Option) | 1.1 kw |
| Sub-Spindle Speed Range (Option) | 100-5,000 r.m.p. |
| Rapid Traverse Speed (X & Z Axis) | 15 m/min |
| Min. Input Unit | 0.001 mm |
| Cutting Tool Size | □16 mm |
| Max. Bore Size of Tool | Ø20 mm |
| X1/Z1/Z2/A2/Z3 Axes Motor | 0.75 kw |
| A3 Axes Motor (Option Sub-Spindle) | 0.75 kw |
| X2/Y2/X3 Axes Motor | 0.5 kw |
| Number of Multi-Spindle Tools | 3 pc |
| Coolant Pump Motor | 1/2 H.P. |
| Hydraulic Pump Motor | 1 H.P. |
| Machine Size (L x W x H) | 1658 x 1362 x 1530 mm |
| Machine Size-Option Sub-Spindle (L x W x H) | 2000 x 1359 x 1657 mm |
| Machine Net Weight (Without Chip Conveyor) | 1220 kgs |
| Machine Net Weight (Option Sub-Spindle, Without Chip Conveyor) | 1880 kgs |
| Items | MULTI 25-S |
|---|---|
| Max. Machining Dia. | Ø26 mm |
| Max. Machining Length | Bar diameter x3 |
| Max. Cross Travel (X Axis) | 170 mm |
| Max. Longitudinal Travel (Z Axis) | 150 mm |
| Bore of Spindle | 34 mm |
| Max. Bar Feeding Dia. | 26 mm |
| Type of Collet | 161 E |
| Spindle Motor | 2.2 kw |
| Spindle Speed Range | 100-5,000 r.m.p. |
| Sub-Spindle Motor (Option) | 1.1 kw |
| Sub-Spindle Speed Range (Option) | 100-5,000 r.m.p. |
| Rapid Traverse Speed (X & Z Axis) | 15 m/min |
| Min. Input Unit | 0.001 mm |
| Cutting Tool Size | □16 mm |
| Max. Bore Size of Tool | Ø20 mm |
| X1/Z1/Z2/A2/Z3 Axes Motor | 0.75 kw |
| A3 Axes Motor (Option Sub-Spindle) | 0.75kw |
| X2/Y2/X3 Axes Motor | 0.5kw |
| Number of Multi-Spindle Tools | 6 pc |
| Coolant Pump Motor | 1/2 H.P. |
| Hydraulic Pump Motor | 1 H.P. |
| Machine Size (L x W x H) | 1658 x 1362 x 1530 mm |
| Machine Size-Option Sub-Spindle (L x W x H) | 2000 x 1359 x 1657 mm |
| Machine Net Weight (Without Chip Conveyor) | 1320 kgs |
| Machine Net Weight (Option Sub-Spindle, Without Chip Conveyor) | 1980 kgs |
