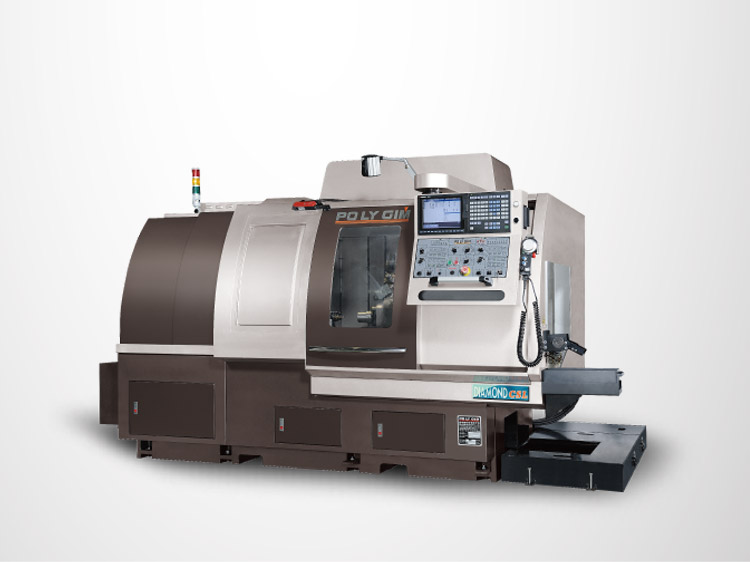

CSL 42-2Y
Swiss Type CNC Lathe
Diamond CSL Series
Sliding Head Turning Machine
CSL 42-2YMachine Features:

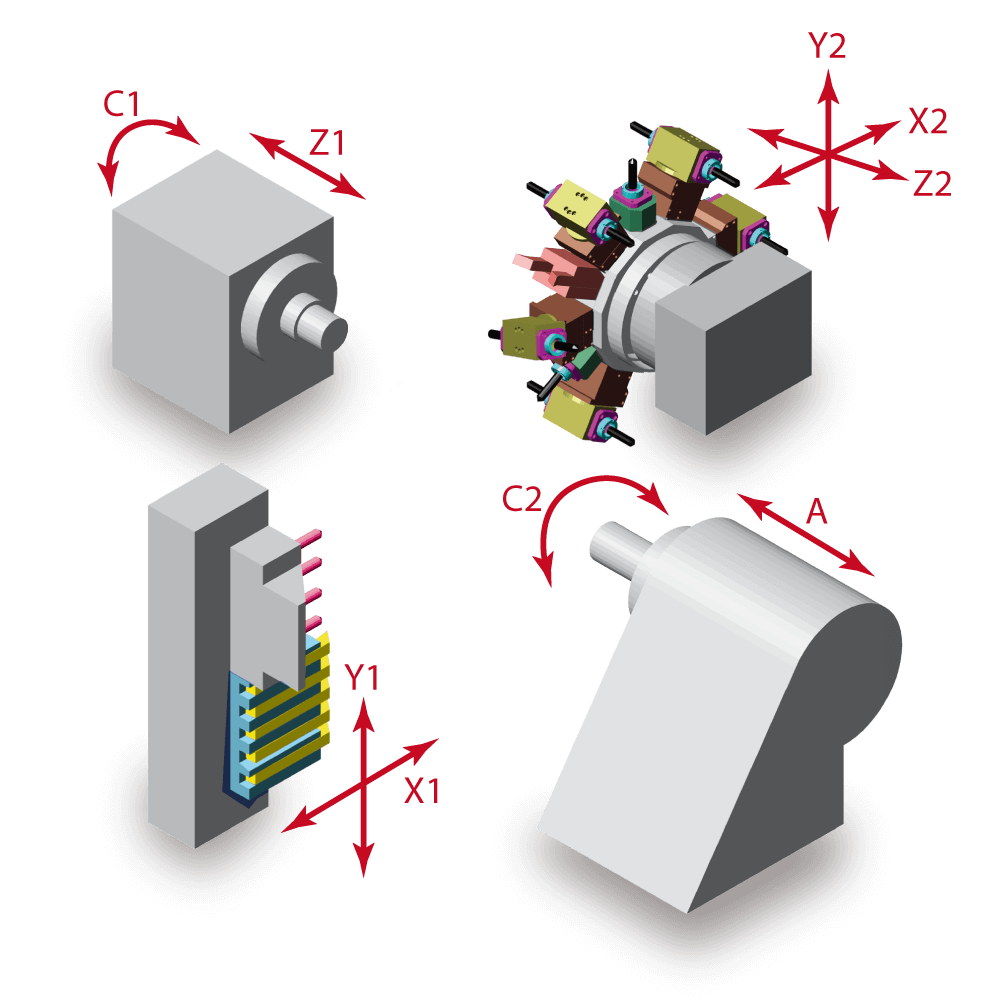

Diamond CSL 42-2Y offers up to 9 axes complex manufacturing capability using the most advanced multi-axes control system.
Using Rough Material Bushing with Guide Bush
Remnant Material 50 mm
Using Live Bushing with Guide Bush
Remnant Material 150 mm
Standard Accessories:
Main spindle- Sub-spindle
- CS Axis (0.01° orientation)
- Working Light
- Coolant System
- Part off Detective Sensor
- Live Bushing
- Chip Conveyer
- Chip Bucket
- Part Catcher
- 5 pcs O.D. Turning Tool Holder
- 4 pcs Cross Working Driven Tool Holder
- 4 pcs Double Side Turning Holder (Turret)
- 4 pcs Double Boring Bar Holder (Turret)
- 2 pcs Axial Drilling and Milling Head (Turret)
- 2 pcs Radial Drilling and Milling Double Head (Turret)
- Rough Material Bushing(Max. Machining = Bar Diameter x 3)
Optional Accessories for Power Turret:
- Double Side Turning Holder
- Double Boring Bar Holder
- Axial Drilling And Milling Head
- Radial Drilling And Milling Double Head
Machine Specifications:
| Items | Y1 (System 1) | Y2 (System 2) | |
|---|---|---|---|
| Working Range | Max. Machining Dia. | Ø42 mm | Ø42 mm |
| Max. Machining Length | 280 mm | ||
| Max. Drilling Capacity | Ø30 mm | Ø30 mm | |
| Max. Tapping Capacity | M16 | M16 | |
| Tooling System | O.D. Turning Tool | 5 | |
| O.D. Turning Tool Dimension | □20x20x120 | ||
| Cross Tool (power – driven tool) | 4 | ||
| Cross Tool Dimension | 16 mm (ER25) | ||
| Cross Tool Speed | 200~6000 rpm | ||
| Power Turret | Power - driven Tool / Station | 12 | |
| O.D. Tool Dimension | □20 x 20 | ||
| I.D. Tool Dimension | Ø25 mm | ||
| Max. O.D. Turning Tool / Station | 6 | ||
| Max. I.D. bore Tool / Station | 6 | ||
| Power – driven Tool Dimension | 16 mm (ER25) | ||
| Power – driven Tool Speed | 200~4000 rpm | ||
| Max. Radial Mill / Drill Tool / Station | 12 | ||
| Max. Axial Mill / Drill Tool / Station | 12 | ||
| Spindle | Spindle Hole Dia. | Ø42 mm | |
| Spindle Speed | 200~6000 rpm | ||
| Sub-spindle | Sub-spindle Hole Dia. | Ø42 mm | |
| Sub-spindle Speed | 200~6000 rpm | ||
| Max. Length for Front Ejection | 120 mm | ||
| Sub-spindle Max. Drilling Dia. | Ø30 mm | ||
| Sub-spindle Max. Tapping Dia. | M16 | ||
| Rapid Speed | A axis | 30m/min | |
| X1, Z1, Y1 axes | 30m/min | ||
| X2, Z2, Y2 axes | 30m/min | ||
| Travel | A axis | 460 mm | |
| X1 axis | 45 mm | ||
| Z1 axis | 300 mm | ||
| Y1 axis | 360 mm | ||
| X2 axis | 130 mm | ||
| Z2 axis | 480 mm | ||
| Y2 axis | 185 mm | ||
| Motors | Main Spindle | 7.5 kW | |
| Sub-spindle | 7.5 kW | ||
| Y1, Y2 axes | 1.5 kW | 2.2 kW | |
| A, X1, Z1, X2, Z2 axes | 1.0 kW | 1.0 kW | |
| Rotary Tools | 2.2 kW | 2.2 kW | |
| Coolant Pump | 1 HP | 1 HP | |
| Lubrication | 25 w | 25 w | |
| Machine Dimensions |
Center Height | 960 mm | |
| Weight | 6380 kgs | ||
| Dimension | 3000 x 1800 x 1980 mm | ||
| Air | Air Pressure | 5 kg/cm | |
| Air Supply | 10 L/min | ||
