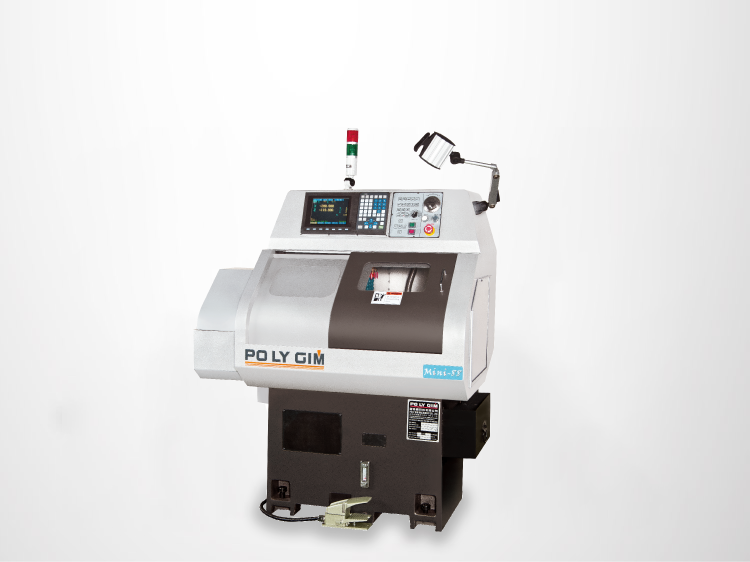

Mini CNC Lathe : Mini-88Meet our game-changing Mini CNC Lathe, engineered for compact spaces without compromising on performance.Featuring a fixed head and can choose with automated design, this machine excels in precision and speed.Its integrated robot system further enhances efficiency, making it the go-to solution for small parts manufacturing.Space-saving, highly efficient, and incredibly precise—our Mini CNC Lathe is the perfect fit for your production needs.
Mini CNC Lathe - Machine Features:

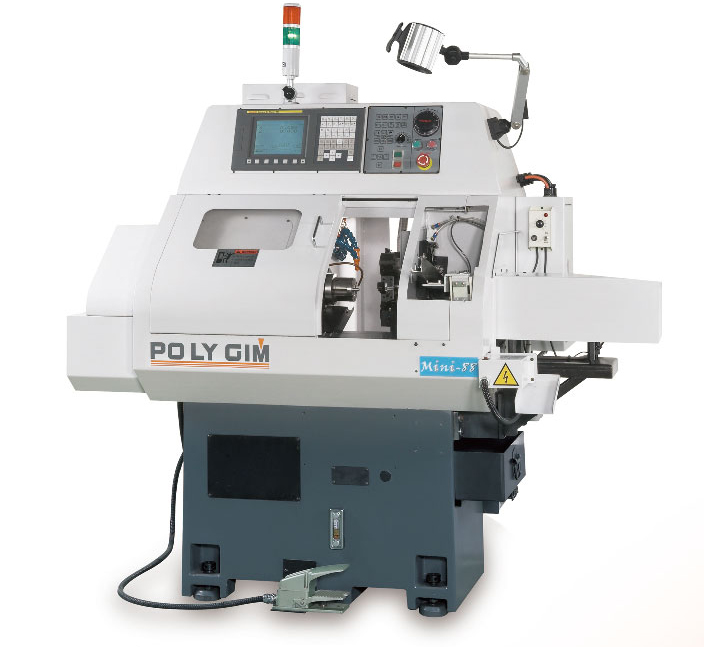

Servo turret increases turning efficiency.
Chip conveyor offers easy chip removal.
Compact part catcher saves you space.
Gang type tools make tool change easily. Optional servo turret increases machining efficiency.
The spindle can be equipped with collet chuck or 3 jaws chuck. Users may choose the optimal choice.
Mini CNC Lathe | MINI-88-20

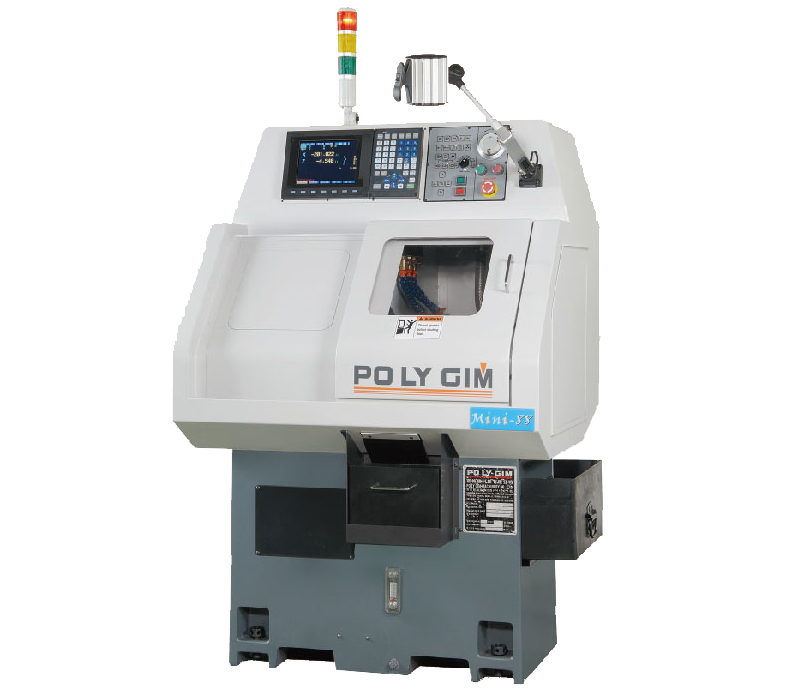

MINI-88-20 is equipped with built-in motor, air pneumatic collet chuck and gang type tool holder. It can house a maximum of 8 tools, which increases the turning efficiency. Besides, it can features with robot system(automated design) that make your working process more smooth.
Mini CNC Lathe - Examples:
Automatic Loading / Unloading
Device Saves Money & Manpower (Robot System)
MODEL A：
Step1：Loading
Step2：Materials loaded onto spindle
MODEL B：
Step1：Loading
Step2：Materials loaded onto spindle
Step3：Materials clamped by chuck for cutting
Step4：Machined workpiece unloaded by part catcher
Mini CNC Lathe - Standard Accessories:
| ITEMS | MINI-88 | MINI-88-20 |
|---|---|---|
| Model 25 Collet Chuck (161E) | 1 pc | - |
| Model 20 Collet Chuck (148E) | - | 1 pc |
| Foot Chuck-Swutch | 1 pc | - |
| Work Light | 1 pc | 1 pc |
| Tool and Tool Box | 1 set | 1set |
| Coolant Device | 1 set | 1 set |
| Base Blocks | 4 pcs | 4 pcs |
| Tool Holder Up Base | 2 pcs | 1 pcs |
| Tool Holder Down Base | 2 pcs | 1 pcs |
| I.D. Stationary Tool Holder | 4 pcs | 1 set |
| Tool Holder Bushing | 6/8/10/12/16 mm 2 pcs / each |
6/8/10/12 mm 2 pcs / each |
Mini CNC Lathe - Optional Accessories:
| ITEMS | MINI-88 | MINI-88-20 | |
|---|---|---|---|
| Servo 8-Position Turret | 1 pc |  |
- |
| 3 Jaws Chuck | 1 pc | |
- |
| Part Catcher | 1 set | |
|
| Chip Conveyor | 1 unit | |
|
| Chip Bucket | 1 unit | |
|
Machine Specifications:
| Items | MINI-88 |
|---|---|
| Max. Machining Dia. | 60 mm (with chuck) 26 mm (with collet chuck) |
| Max. Machining Length | Bar diameter x 3 |
| Swing Over Cross Slide | 120 mm |
| Max. Cross Trave (X Axis) | 170 mm |
| Max. Longitudinal Travel (Z Axis) | 170 mm |
| Bore of Spindle | 34 mm |
| Max. Bar Feeding Dia. | 26 mm |
| Spindle Nose | Ø85 mm |
| Hydraulic Chuck | 4" |
| Spindle Motor | 2.2 kw / 3 H.P. |
| Spindle Speed Range | 100-5000 r.p.m. |
| Rapid Traverse Speed (X & Z Axis) | 15 m/min |
| Min. Input Unit | 0.001 mm |
| Cutting Tool Size | 16 mm |
| Max. Bore Size of Tool | Ø20 mm |
| Coolant Pump Motor | 1/4 H.P. |
| Machine Dimension (L x W x H) | 1200 x 1000 x 1500 mm |
| Machine Net Weight | 1058 kgs |
| Items | MINI-88-20 |
|---|---|
| Max. Machining Dia. | 21 mm |
| Max. Machining Length | Bar diameter x 3 |
| Swing Over Cross Slide | 120 mm |
| Max. Cross Trave (X Axis) | 170 mm |
| Max. Longitudinal Travel (Z Axis) | 170 mm |
| Bore of Spindle | 23 mm |
| Max. Bar Feeding Dia. | 21 mm |
| Spindle Nose | - |
| Hydraulic Chuck | - |
| Spindle Motor | 2.2 kw / 3 H.P. |
| Spindle Speed Range | 100-8000 r.p.m. |
| Rapid Traverse Speed (X & Z Axis) | 15 m/min |
| Min. Input Unit | 0.001 mm |
| Cutting Tool Size | 16 mm |
| Max. Bore Size of Tool | Ø16 mm |
| Coolant Pump Motor | 1/4 H.P. |
| Machine Dimension (L x W x H) | 1100 x 1000 x 1500 mm |
| Machine Net Weight | 1008 kgs |
