CSL 12-2Y / 16-2Y
Swiss Type CNC Lathe
Diamond CSL Series
Turning Lathe
CSL 12-2Y / 16-2Y
Machine Features:

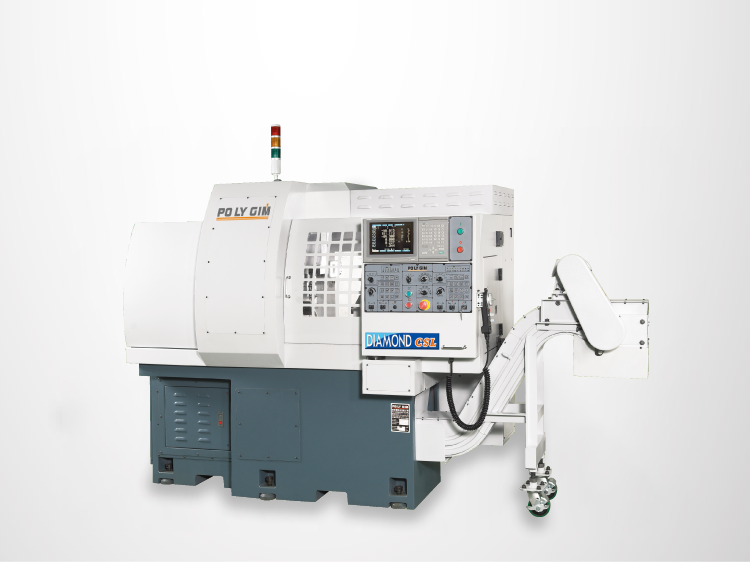

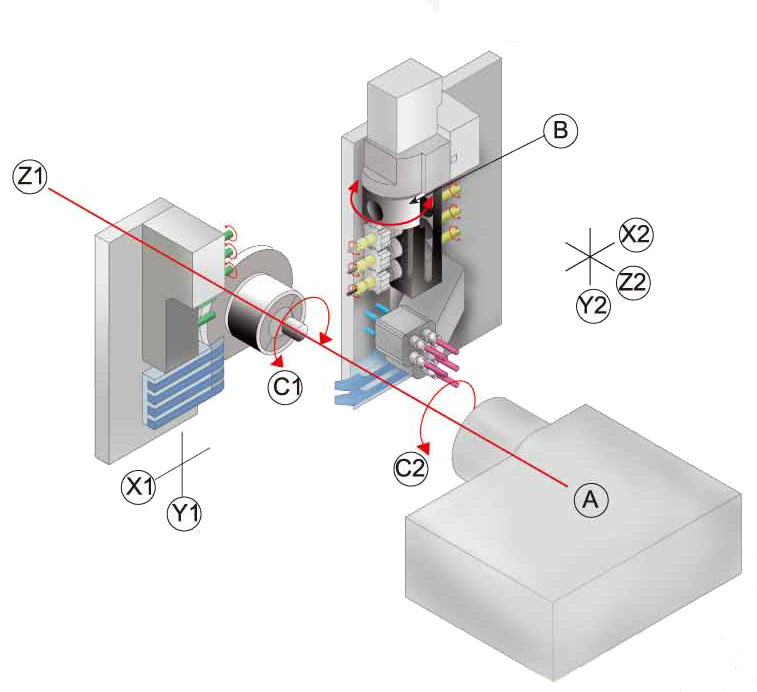

Po Ly Gim introduces the smallest Swiss type CNC lathe: the Diamond CSL 12-2Y. With a 12mm bar capacity and up to 10 working axes, the Diamond CSL 12-2Y is not only compact in size, it also has superb capabilities. Among its unique features are the two Y-axes and six fully programmable (360°) tools that work on both the main and sub-spindle, making the Diamond CSL 12-2Y suitable for producing small electronic parts. It is also capable of doing milling and turning.
Tool Post:
6 pcs O.D. Turning Tool Holder
5 pcs I.D. Stationary Tool Holder
5 pcs Back I.D. Stationary Tool Holder
5 pcs Cross Working Driven Tool Holder
6 pcs 360° Automatic Rotary Driven Tool Holder

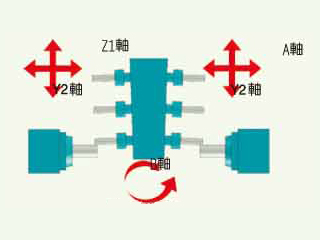

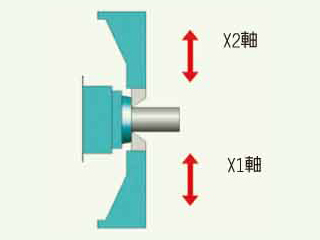

Simultaneous rough / finishing processing

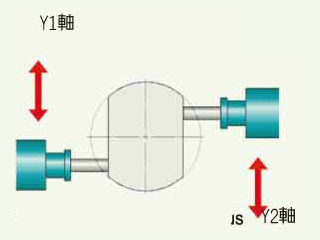

Simultaneous main spindle bevel drilling / milling

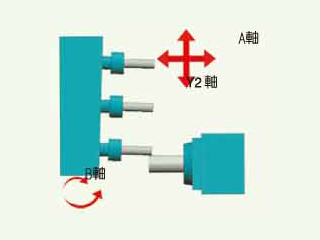

Opposite end face processing
Simultaneous opposite milling processing

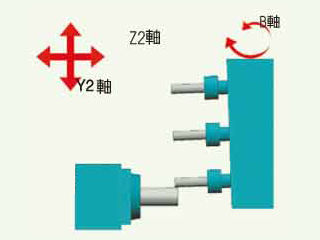

Simultaneous sub-spindle bevel drlling / milling
Standard Accessories:
Main spindle- Sub-spindle
- Working light
- Coolant system
- Part off detective sensor
- Fixed bushing
- Part catcher
- 6 pcs O.D. turning tool holder
- 5 pcs front I.D. stationary tool holder
- 5 pcs back I.D. stationary tool holder
Optional Accessories:
5 pcs cross working driven tool holder- 6 pcs 360° automatic rotary driven tool holder
- CS axis
- Live bushing
- Rough material bushing
- (Max. machining = Bar dimmeter x3)
- Chip conveyer
- Chip bucket
Machine Specifications:
| Items | Y1 | Y2 | |
|---|---|---|---|
| Working Range | Max. Machining Dia. | Ø12.7 mm | |
| Max. Machining Length Per Chucking | 143 mm | ||
| Max. Drilling Capacity | Ø7 mm | ||
| Max. Tapping Capacity | M6 | ||
| Tooling System | O.D. Turning Tooling | 4 | 2 |
| O.D. Turning Tool Dimension | □10 x10 x 100 | □10 x 10 x 100 | |
| I.D. Tool | 5 | 5 | |
| I.D. Tool Dimension | 7 mm (ER11) | ||
| Cross Tool (Power - Driven Tool) | 5 | ||
| Cross Tool Dimension | 7 mm (ER11) | ||
| Cross Tool Speed | 200~6000 r.p.m. | ||
| 360° Automatic Rotary Driven Tool | 6 | ||
| 360° Automatic Rotary Driven Tool Dimension | 10 mm (ER16) x3 7 mm (ER11) x3 |
||
| 360° Automatic Rotary Driven Tool Speed | 200~6000 r.p.m. | ||
| Spindle | Spindle Hole Dia. | Ø13 mm | |
| Spindle Speed | 200~10,000 r.p.m. | ||
| Sub-Spindle | Sub-Spindle Hole Dia. | Ø13 mm | |
| Sub-Spindle Speed | 200~10,000 r.p.m. | ||
| Sub-Spindle Max. Drilling Capacity. | Ø7 mm | ||
| Sub-Spindle Max. Tapping Capacity. | M6 | ||
| Rapid Speed | A Axis | 30 m/min | |
| X1, Z1 Axis | 30 m/min | ||
| Y1 Axis | 30 m/min | ||
| X2, Y2, Z2 Axis | 30 m/min | ||
| Motor | Main Spindle (M65/700) | 1.5 kw / 2.2 kw | |
| Sub-Spindle (M65/700) | 1.5 kw / 2.2 kw | ||
| Y1, Y2 Axis | 1.0 kw | 1.0 kw | |
| A, X1, X2, Z1, Z2 Axis | 0.75 kw | 0.75 kw | |
| B Axis | 0.4 kw | ||
| Rotary Tools / B Axis Rotary Tools | 0.4 kw | 0.4 kw | |
| Coolant Pump | 1 H.P. | ||
| Lubrication | 25 W | ||
| Machine Dimensions | Center Height | 1050 mm | |
| Weight | 2580 kg | ||
| Dimension | 2500 x 1200 x 1800 mm | ||
| Air Pressure | Air Pressure | 5 kg /cm | |
| Air Supply | 10 L /min | ||
| Items | Y1 | Y2 | |
|---|---|---|---|
| Working Range | Max. Machining Dia. | Ø16.5 mm | |
| Max. Machining Length Per Chucking | 143 mm | ||
| Max. Drilling Capacity | Ø10 mm | ||
| Max. Tapping Capacity | M8 | ||
| Tooling System | O.D. Turning Tooling | 4 | 2 |
| O.D. Turning Tool Dimension | □10 x 10 x 100 | □10 x 10 x 100 | |
| I.D. Tool | 5 | 5 | |
| I.D. Tool Dimension | 10 mm (ER16) | 10 mm (ER16) | |
| Cross Tool (Power - Driven Tool) | 5 | ||
| Cross Tool Dimension | 10 mm (ER16) | ||
| Cross Tool Speed | 200~6000 r.p.m. | ||
| 360° Automatic Rotary Driven Tool | 6 | ||
| 360° Automatic Rotary Driven Tool Dimension | 10 mm (ER16) x3 7 mm (ER11 )x3 |
||
| 360° Automatic Rotary Driven Tool Speed | 200~6000 r.p.m. | ||
| Spindle | Spindle Hole Dia. | Ø17 mm | |
| Spindle Speed | 200~10,000 r.p.m. | ||
| Sub-Spindle | Sub-Spindle Hole Dia. | Ø17 mm | |
| Sub-Spindle Speed | 200~10,000 r.p.m. | ||
| Sub-Spindle Max. Drilling Capacity. | Ø10 mm | ||
| Sub-Spindle Max. Tapping Capacity. | M8 | ||
| Rapid Speed | A Axis | 30 m/min | |
| X1, Z1 Axis | 30 m/min | ||
| Y1 Axis | 30 m/min | ||
| X2, Y2, Z2 Axis | 30 m/min | ||
| Motor | Main Spindle (M65/700) | 1.5 kw / 2.2 kw | |
| Sub-Spindle (M65/700) | 1.5 kw / 2.2 kw | ||
| Y1, Y2 Axis | 1.0 kw | 1.0 kw | |
| A, X1, X2, Z1, Z2 Axis | 0.75 kw | 0.75 kw | |
| B Axis | 0.4 kw | ||
| Rotary Tools / B Axis Rotary Tools | 0.4 kw | 0.4 kw | |
| Coolant Pump | 1 H.P. | ||
| Lubrication | 25 W | ||
| Machine Dimensions | Center Height | 1050 mm | |
| Weight | 2680 kg | ||
| Dimension | 2500 x 1200 x 1800 mm | ||
| Air Pressure | Air Pressure | 5 kg /cm | |
| Air Supply | 10 L / min | ||
